It's New - and It's Blue - The New Nanode RF

First example of Nanode RF - built up in Shenzhen, China, by Toby Yu. 13/11/2011. Some boards will be part assembled like this in China, in a small workshop, bringing employment to 4 engineers. These boards will be sold locally and also exported to the western countries.

In readiness for sales commencing in early December - here's the new Nanode RF pcb - hot off the line - manufactured in China.

As you can see - we are entering a blue phase. The board is immediately identifiable with the large footprint in the bottom left hand corner to accept the wireless RFM12B module, and the H logo is now perforated with an 8 pin DIL socket - to accept the new plug in expansion SRAM.

Other than that, changes are few :-

1. Additional green LED indicator
2. Three extra resistors
3. Extra 3V3 regulator
4. mini USB socket for powering

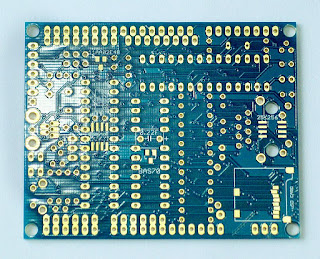

On the underside of the pcb there are a few extra features:-

1. The footprint for the micros SD card - on the bottom right hand edge.
2. A 8 pin soic footprint to take another memory device (SRAM, FRAM, Flash) as an alternative to the micro SD card.
3. A real time clock and calendar chip, with accompanying super-capacitor and 32kHz crystal - underneath the ATmega328.
